MD Series | Remote Controlled Gear Driven Tilt/Turn Welding Positioner Rated up to 5,000 lbs

Koike Aronson, Inc

MD Series | Remote Controlled Gear Driven Tilt/Turn Welding Positioner Rated up to 5,000 lbs

(No reviews yet) Write a Review
Click To Request Quote

The MD series tilt/turn positioners strike an ideal balance between performance and affordability, featuring a broad range of weight handling capacities to suit diverse applications. The MD15VF and MD30VF models accommodate loads of up to 3,000 lbs and operate on 115-volt, single-phase current, offering versatility and convenience. For heavier requirements, the MD50VF model handles up to 5,000 lbs showcasing their ability to handle substantial weights, operating on 460-volt, three-phase current, ensuring robust performance.

  • 2-Year Machine Warranty
  • 5-Year Variable Frequency Drive Warranty
Literature

0 Review Hide Reviews Show Reviews Write a Review

PROFESSIONAL QUALITY. EXCEPTIONAL VALUE.

banner-image

The MD series Positioners offer a mid-range selection that delivers exceptional quality and craftsmanship, akin to our HD line, while maintaining affordability. The series as a whole incorporates slew ring bearings on the rotation axis, includes thru-holes for easy purge access, and features manual height-adjustable bases. These positioners are proudly made and engineered in the United States, utilizing readily available components.

FEATURES AND STANDARD EQUIPMENT :

Precision at your fingetips.

VERSATILE POWERED TILT

All tables come standard with a powered forward tilt of up to 135 degrees through the usage of AC Brake Motors.

banner-image
banner-image
Your safety matters.

NEMA 12 ELECTRICALS

Every MD Series Positioner is fitted with NEMA 12 electrical
components for enhanced safety and protection.

Smooth Height Adjustment.

MANUAL PIN-THROUGH POST SYSTEM

Pin-through post adjustment enables easy and precise regulation
of the workpiece height for various tasks.

banner-image
banner-image
Quality Parts No Matter The Location.

INTERNAL GEARED SLEW RING

We make sure to include only the highest-quality components, even where not immediately seen.

This is why we've included an internal Slewed Gear Ring to enhancs the rotation capabilities of the positioner, allowing for precise and controlled movement.

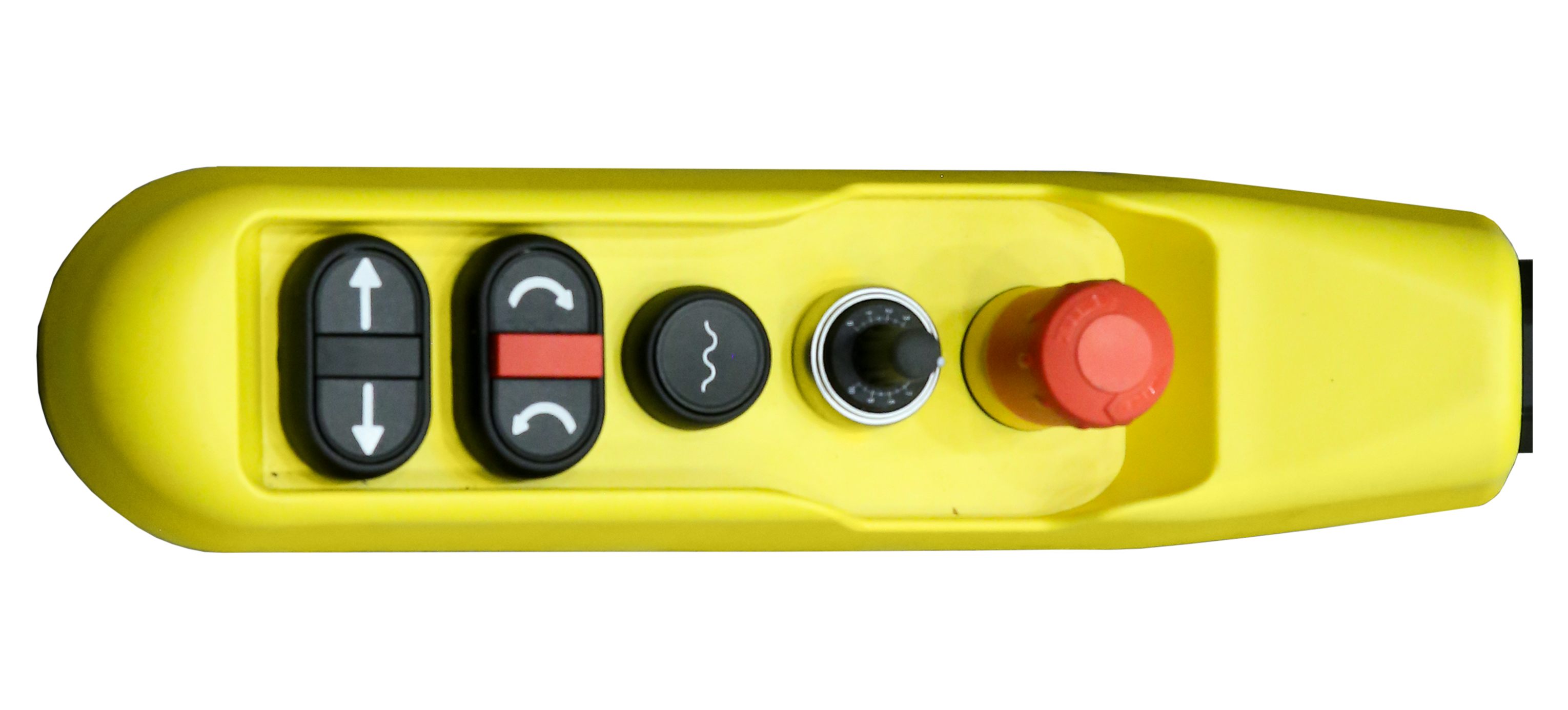

HAND CONTROL PENDANT :

Low voltage hand control pendant comes standard for precise tilt and variable speed drive operation.
