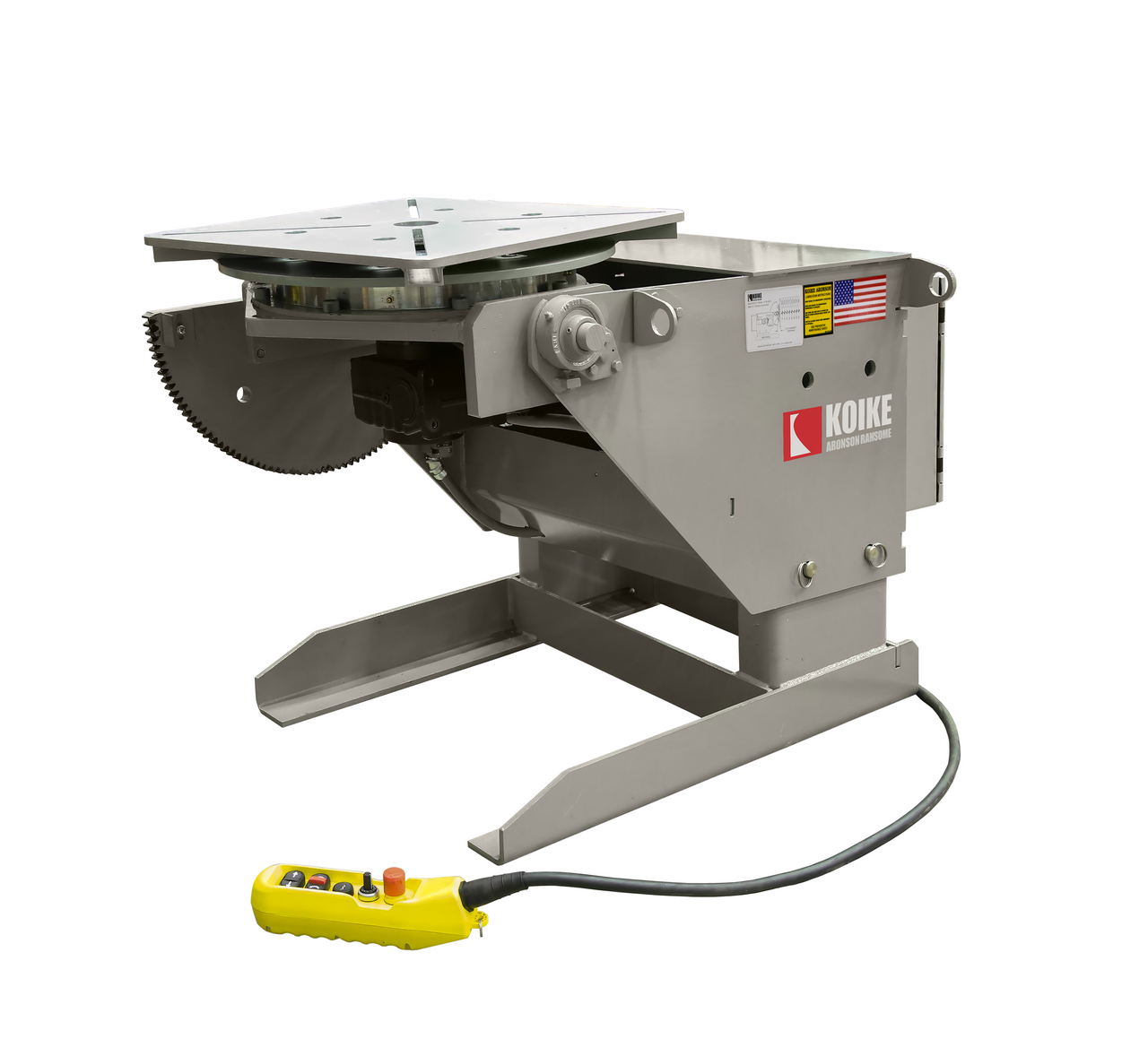

HD Series | Remote Controlled Gear Driven Tilt/Turn Welding Positioner + 135 Degree Tilt

(No reviews yet) Write a Review
Click To Request Quote

Introducing the HD Positioner Series, a comprehensive range of industrial positioning solutions designed to cater to a wide spectrum of needs. The HD Positioner Series encompasses a variety of models, each carefully engineered to provide reliable and efficient performance. From the HD20 gear-driven positioner, which efficiently handles loads of up to 2,000 lbs with 12,000 in-lbs of rotation gearing, to the robust HD25 - HD100 models designed for continuous operation, and the heavy-duty HD160 - HD700 series with larger capacities and precision gearing. What sets the HD Positioner Series apart is its unwavering commitment to delivering both power and portability, making it the ideal choice for tackling a multitude of tasks in any industrial setting.

Features and Standard Equipment:

  • Boxed Section Design:
    • Designed for maximum strength and resistance to distortion when loaded, ensuring stable support for gearing.
  • Motor Accessibility:
    • Motors are strategically mounted for easy access and are sealed to prevent dust contamination, ensuring long-lasting performance.
  • Precision Tilt Control:
    • Equipped with limit switches and precision adjustable tilt-stop triggers for precise tilt setup and over-travel prevention.
  • Ground Blocks:
    • Utilizes ground blocks for secure clamping of cable terminals, guaranteeing a consistent weld current without variations.
  • Heavy-Duty Final Drive Gearing:
    • Features heavy-duty precision final drive gearing, ensuring smooth table rotation with minimal lost motion.
  • High Load Capacity Bearings:
    • Equipped with high load capacity tapered roller bearings, preloaded on spindles to ensure reliable weld ground conduction.
  • Versatile Table Design:
    • Tables come with full-length slots, providing convenient nut access on the bottom side or edge, and a powered forward tilt of up to 135 degrees.
  • Electrical Safety:
    • NEMA 12 electrical components for enhanced safety and protection.
  • Manual Height Adjustment:
    • Pin-through post manual height adjustment for flexibility and ease of use.
  • Efficient Wormgear Drive:
    • Utilizes a 90,000 psi aluminum-bronze low-efficiency wormgear drive, reducing the risk of backdriving.
  • Durable Gearboxes:
    • All-steel welded gearboxes for long-lasting durability.
  • Hand Control Pendants:
    • Low voltage hand control pendants for precise operation.
  • Variable Speed Drives:
    • Equipped with 50:1 variable speed drives for optimal control.
  • AC Brake Motors:
    • Utilizes AC brake motors to enhance safety and control.
