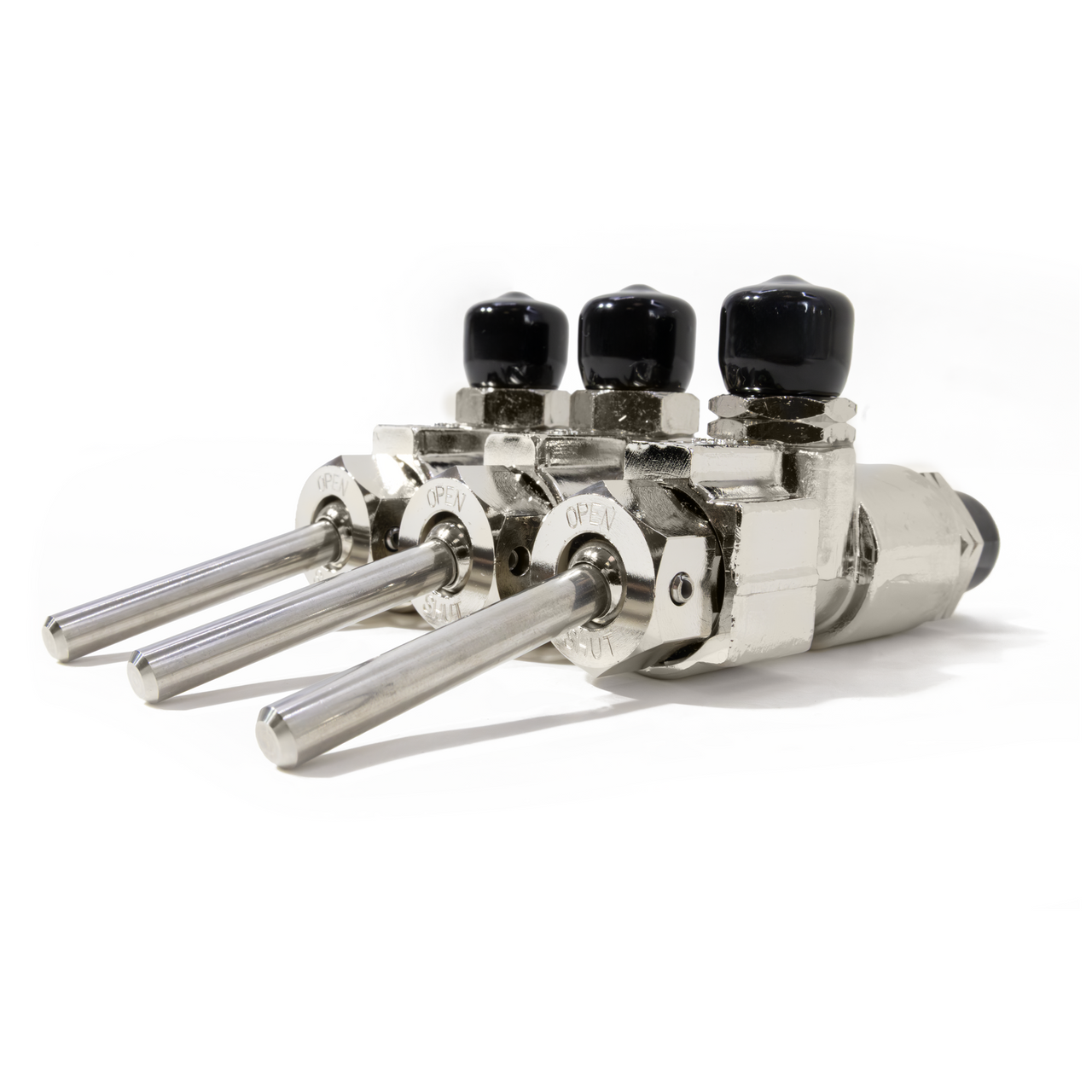

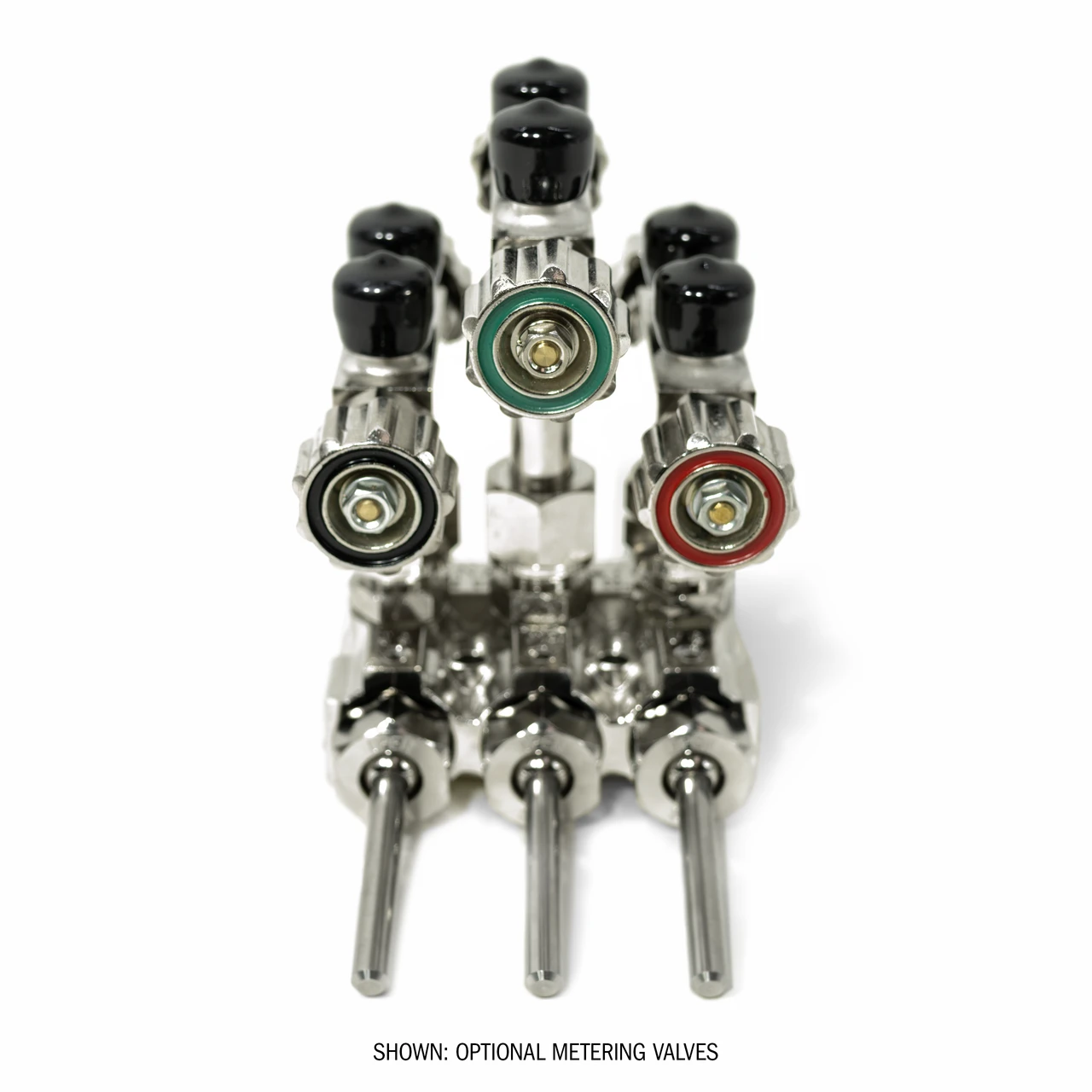

Koike's Oxy-Fuel Manifolds with Snap Valves (ZA3271013) provide a compact, reliable connection point for managing gas supply lines on compatible oxy-fuel cutting systems, machine torches, and hand torches. Built with durable chrome-finished metal construction, these manifolds are available in two configurations: body only for applications where the existing metering valve will be reused, or with metering valve included for a complete replacement assembly.
Use this manifold configuration when the application requires Koike snap-valve gas-flow control and the existing metering valve will be reused.

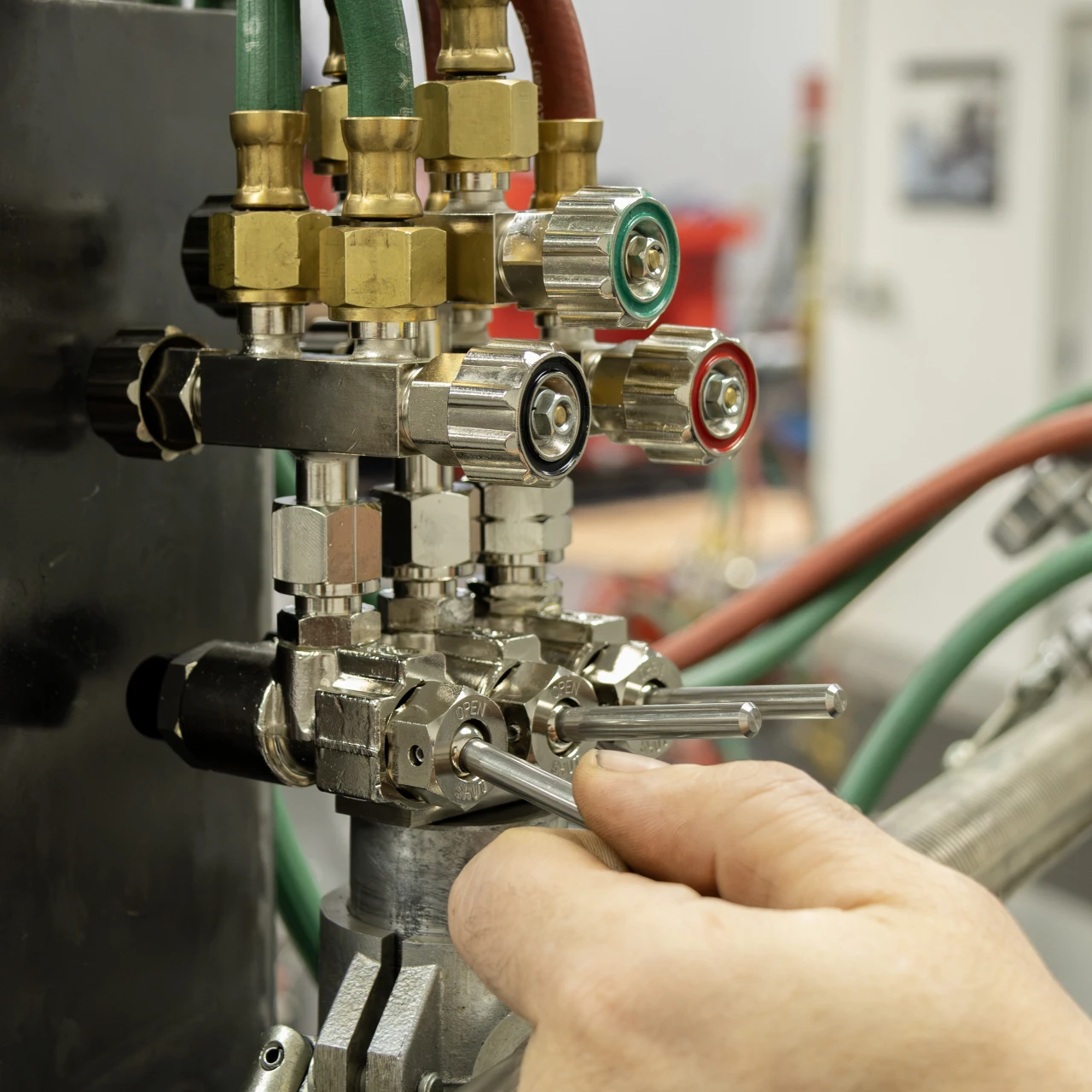

Set pressure and flame with the normal controls, then use the integrated snap valves for on/off flow without repeatedly changing the established adjustment.
Features and Benefits:
Universal Compatibility
Designed to work with 9/16" Type B fittings, the most common in the industry.

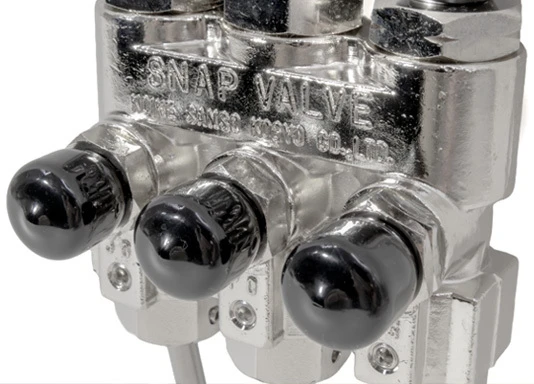

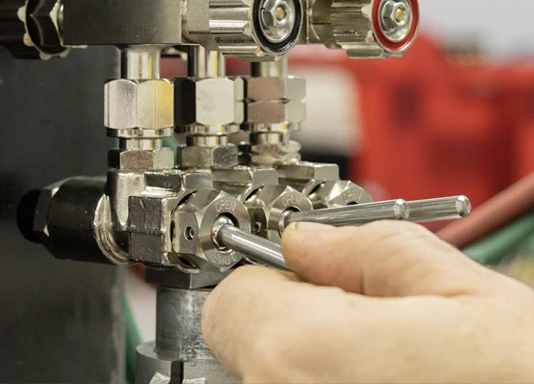

Integrated snap valves
Allows fast, positive valve actuation for efficient gas line control.

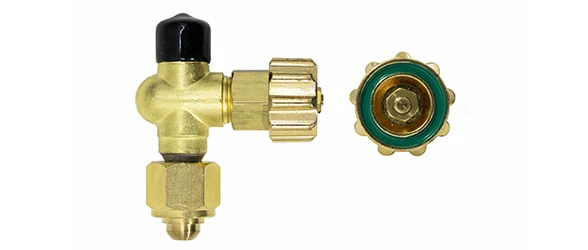

Available with or without metering valve
Choose the body-only version when reusing an existing metering valve, or select the metering-valve-included version for a more complete replacement.
Durable metal construction
Built for demanding shop, fabrication, and industrial gas-control environments.
Compact replacement assembly
Designed to fit into compatible manifold systems without unnecessary bulk.
Clearly arranged connection points
Organized ports and line positions help simplify installation and service.
Service-friendly design
Useful for equipment repair, replacement, or rebuild work where reliable gas control is required.

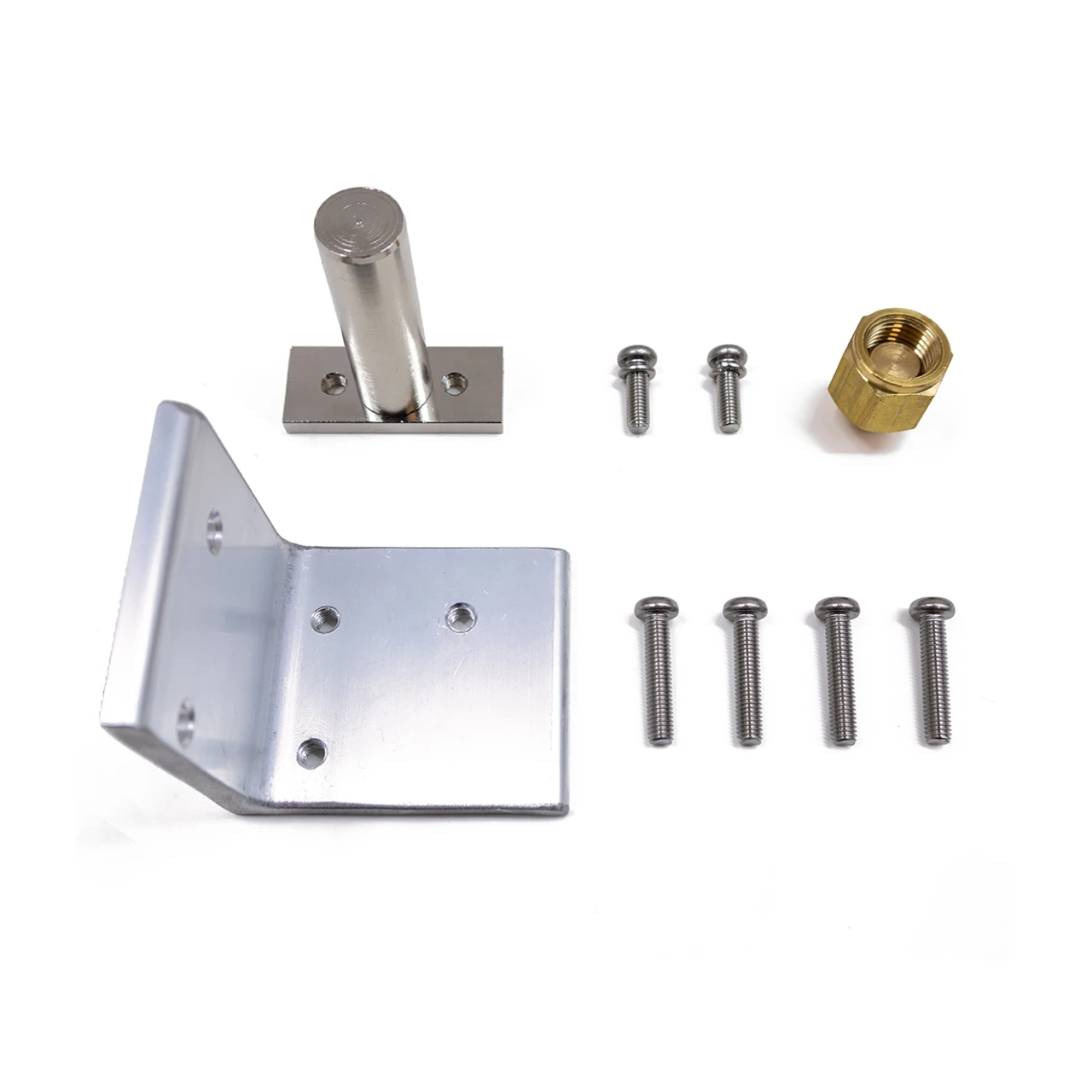

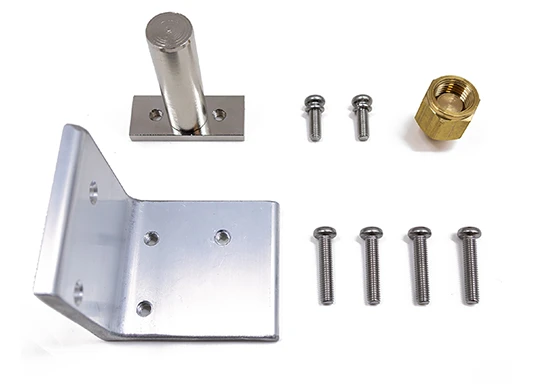

Included Mounting Hardware
Mounting hardware allows operators to attach manifold to a variety of equipment configurations.
View full specifications, comparison & FAQ
Specifications
| Specification | Detail |
|---|---|
| Product Code | 61003977 |
| Fitting Size | 9/16" Type B |
| Gas Type | Oxygen and Fuel |
| Dimensions | 1.5"x0.5"x3.5" |
| Weight | 1.5lbs |
| UPC/GTIN | 00850034034256 |
| Country of Origin | Japan |
Frequently Asked Questions
What does 'metering valve optional' mean?
This configuration is intended for applications where a metering valve isn't required, but can be optionally used if so equipped.
Can I reuse a metering valve that I already own?
Yes, any compatible metering valves can be interfaced with this manifold.
If I don't have a metering valve, where can I get one?

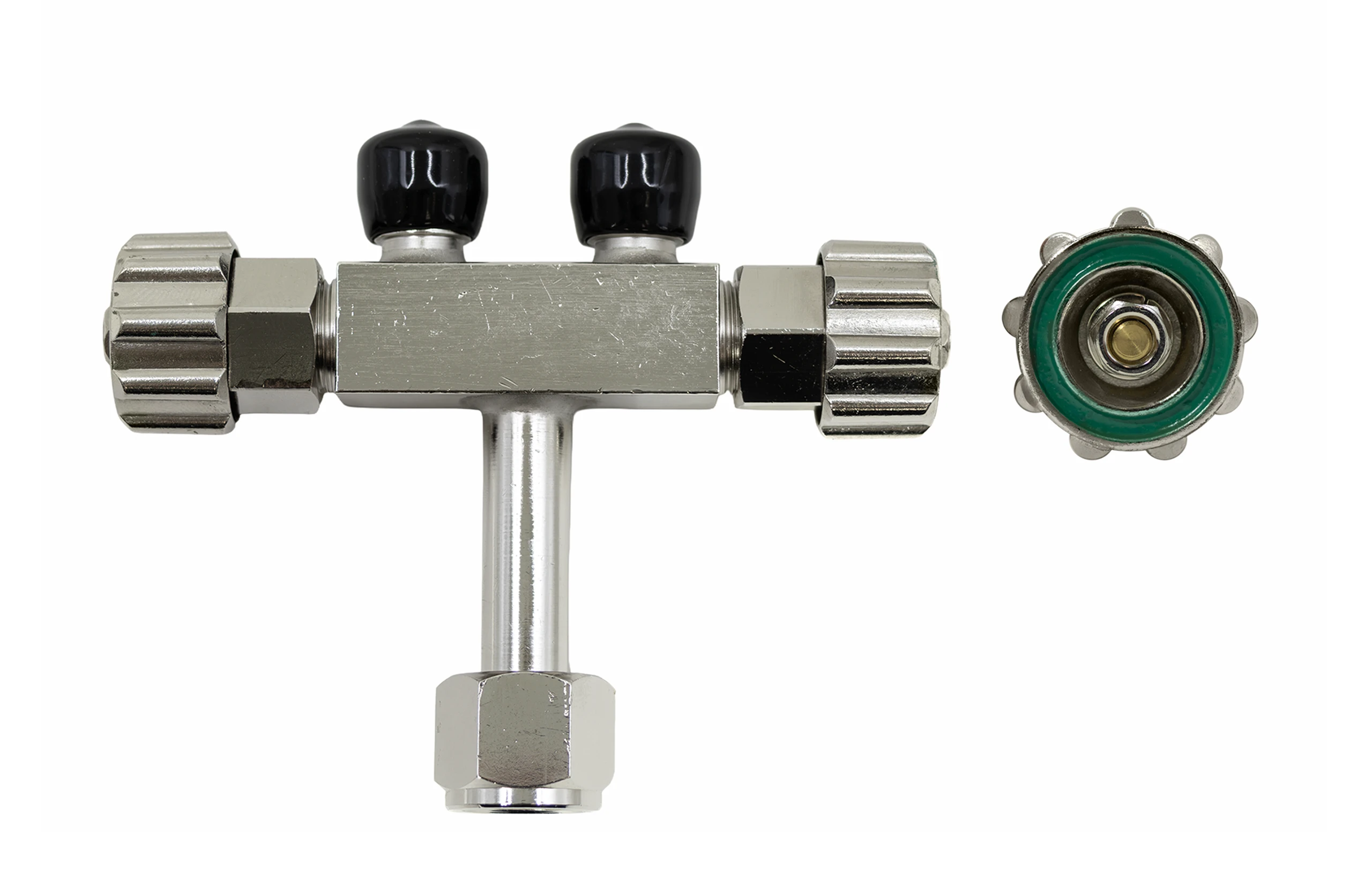

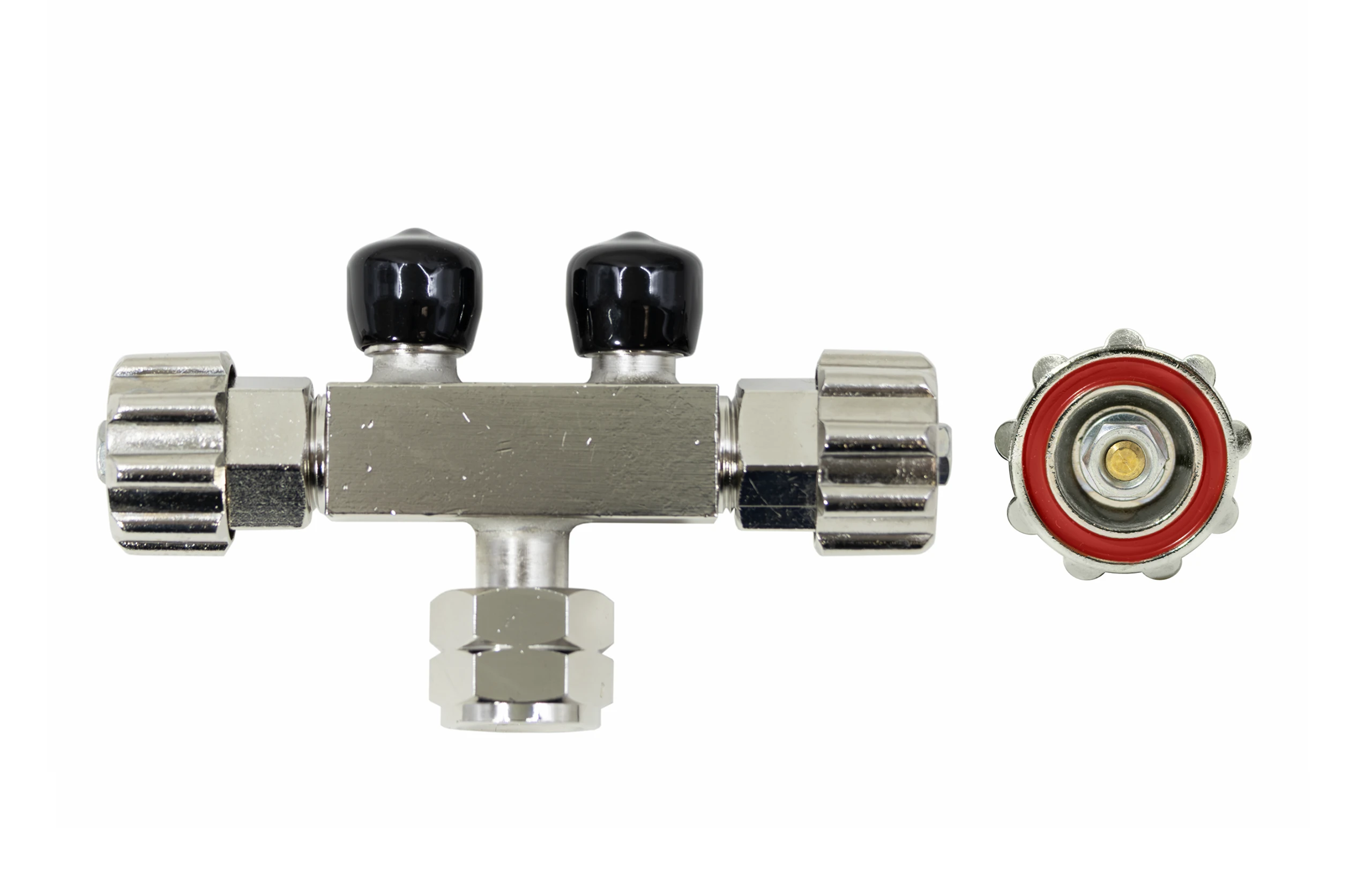

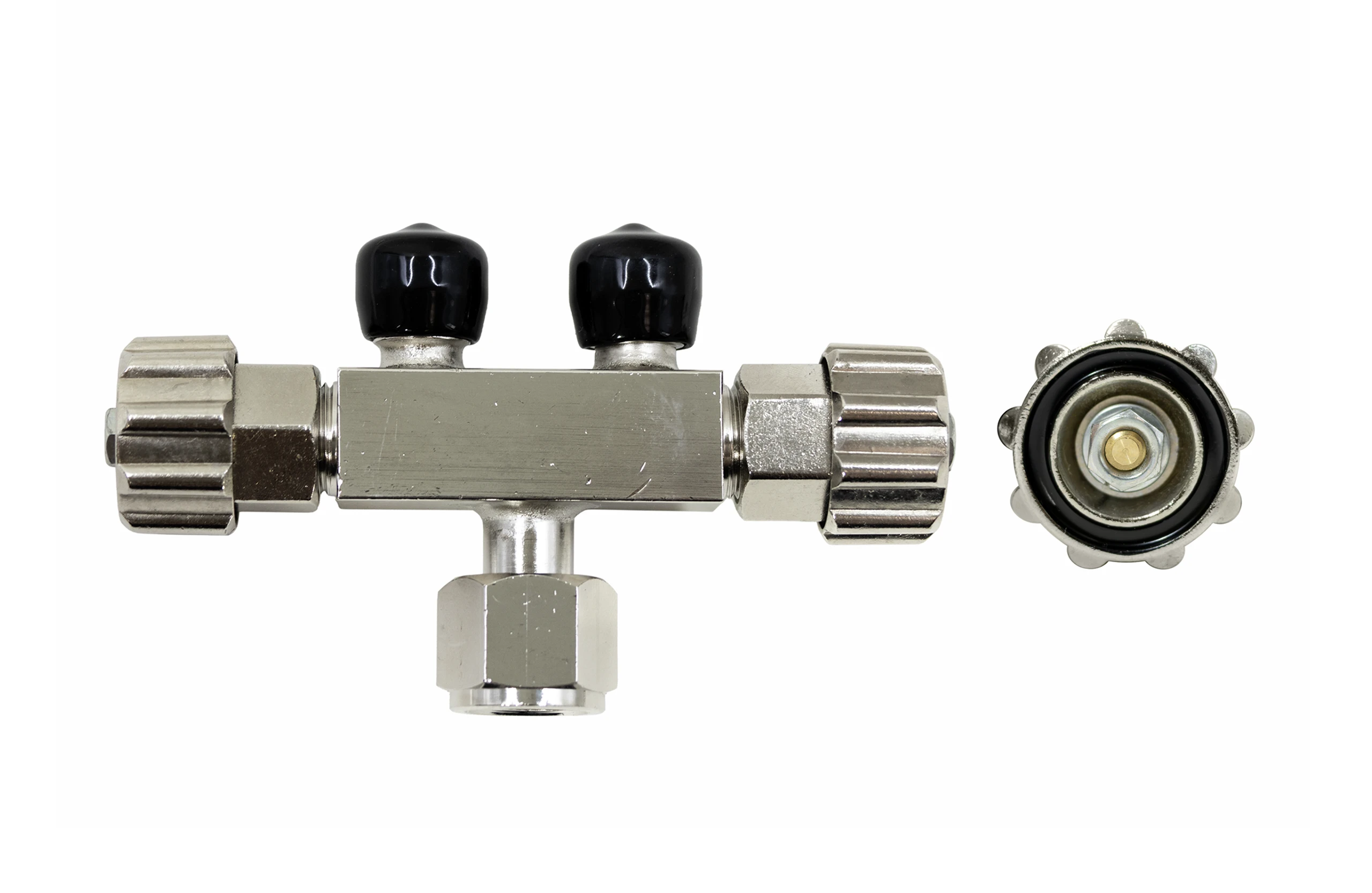

Koike offers a wide variety of single and dual port metering valves for pre-heat oxygen, cutting oxygen, and fuel gas.
Is this manifold different from the other oxy-fuel manifold Koike offers (SKU 61003977)?
Yes. Though the snap-valve manifold function is similar, SKU 61003977 includes a built-in metering valve.
Does this manifold set gas pressure?
No. Regulators and normal system controls set pressure and flame. The integrated snap valves provide on/off flow control.
Which machines fit this manifold?
This snap-valve manifold will work with all Koike Oxy-Fuel Cutting Systems.
