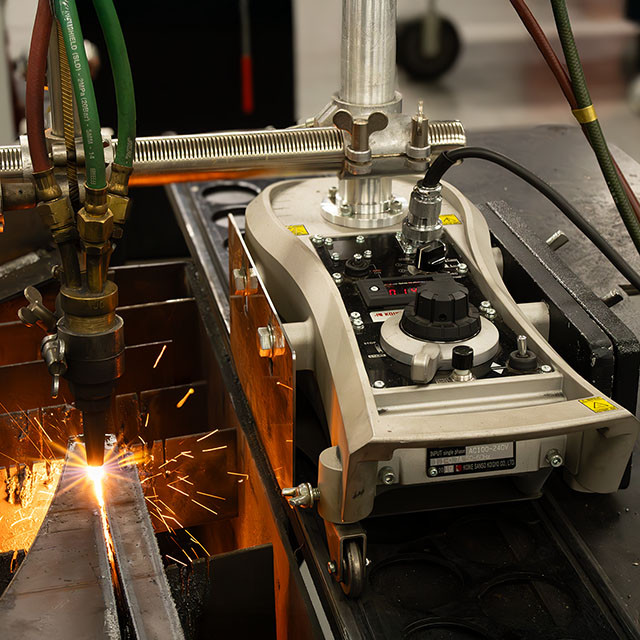

IK-12 Next with S-100 Kit and Track on a White Background

Koike Aronson, Inc

IK-12 Next | Portable Track-Guided Muti-Attachment 3-in-1 Welding & Plasma/Oxy-Fuel Cutting Machine

$3,158.00
(2 reviews) Write a Review
SKU:
20506283
Total: $0.00

Quick-Specs:

  • Cut From 1/4 - 10 In
  • Plasma Cut 1 In
  • 1.6 - 94.5 In. Per Min.
  • 60 In. Linkable Tracks

Engineered to replace the durable IK-12 Max3, one of the most popular and best-selling cutting carriages in the fabrication industry, the IK-12 NEXT continues a legacy of incredibly sturdy and versatile tractors, being specifically designed to seamlessly integrate with a wide range of applications. This adaptable machine excels in its ability to adjust to various processes while retaining a simplistic operating system.

Features and Benefits:

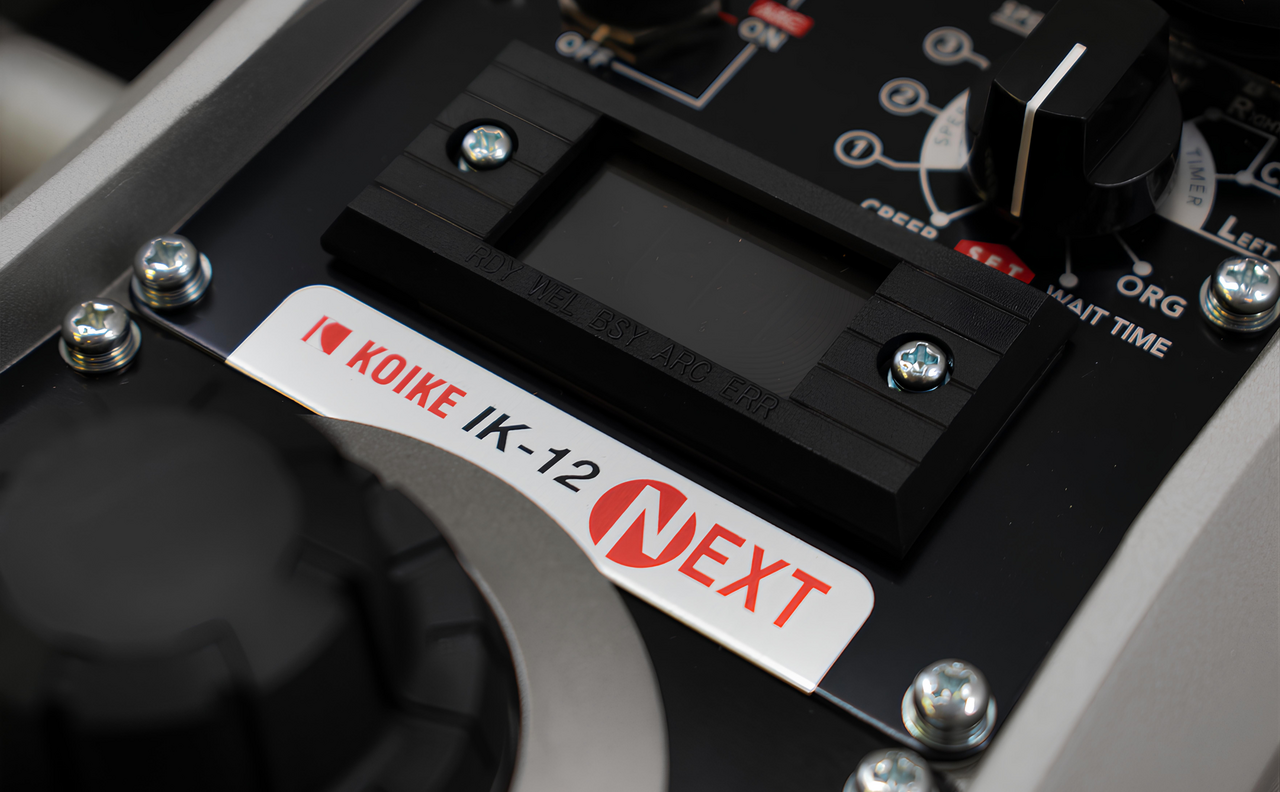

  • Multi-Function Control Panel:
    • The new digital control panel enables the operator to accurately set a wide range of parameters as they relate to each process. With the use of a LCD display, set-up time is greatly reduced, enhancing repeatability.
  • Powertrain:
    • Allows for extremely accurate positioning, ensuring continuous drive speed and pulling force that is not compromised by power fluctuations or varying load weight.
  • Multi-Purpose Cutting and Welding:
    • Comes standard with the ability to interface to most power sources. Whether cutting or welding, the IK-12 NEXT has a built-in control that will send command signals directly to an attached power source interlock switch.
Literature
Manual
Parts Map

2 Reviews Hide Reviews Show Reviews Write a Review

  • 5
    Great track bug

    Posted by Daryl on Mar 19th 2024

    does exactly what is supposed to do, works very well

  • 5
    Track Torch

    Posted by Colby on Mar 19th 2024

    Ordered this track torch and put it into service right away. Hasn't missed, very reliable quality machine

YOUR ALL-IN-ONE PORTABLE POWERHOUSE.

Experience the infinite versatility of the IK-12 NEXT with its seamless application adjustment, all powered by one simplistic operating system.

CUTTING OPTIONS :

S-100 (BEST SELLER)

SINGLE OXY-FUEL TORCH KIT

A standard single torch unit; common applications include plate stripping
or pertorming compound bevel work.

Set compatible with Acetylene and LPG gas.

banner-image
banner-image
SP-100

SINGLE OXY-FUEL TORCH KIT W/ SINGLE PLATE TRACKER

A standard single torch unit; Includes the functionality of the base
Single Torch Kit with the incorporation of a plate-tracking system
desgined to maintain a precise distance between the plate and the
workpiece, enhancing accuracy in cutting and beveling operations.

Additionally, this set features mechanical torch height control.

Set compatible with Acetylene and LPG gas.

S-200

DUAL OXY-FUEL TORCH KIT

A standard two torch unit; common applications with dual torch head
include plate stripping or performing compound bevel work.

Set compatible with Acetylene and LPG gas.

banner-image
banner-image
SP-200

DUAL OXY-FUEL TORCH KIT W/ DUAL PLATE TRACKER

A standard two torch unit: Incuices the functionality of the base Dual Torch
Kit with the incorporation of a plate tracking system designed to maintain a
precise distance between the plate and the workpiece, enabling enhanced accuracy in cutting and beveling operations.

Additionally, this set features mechanical torch height control.

Set compatible with Acetylene and LPG gas.

SP-300

DUAL OXY-FUEL TORCH KIT W/ SINGLE PLATE TRACKER

A standard two torch unit on a single tracking system to maintain a precise distance between the plate and workpiece. Common applications include V-grooves or plate edge beveling.

Unique adjustment mechanism maintains angle of two torches for accurate Y & X bevel cuts while included counterweight provides additional machine stability.

Additionally, this set features mechanical torch heigh control.

Set compatible with Acetylene and LPG gas.

banner-image
banner-image
300L

SINGLE HEAVY DUTY OXY-FUEL TORCH KIT

A robust one torch design; able to cut up to 10 in (2540mm)
plate thickness or where a large stand-off is needed.

Set compatible with Acetylene and LPG gas.

Item Sub Header

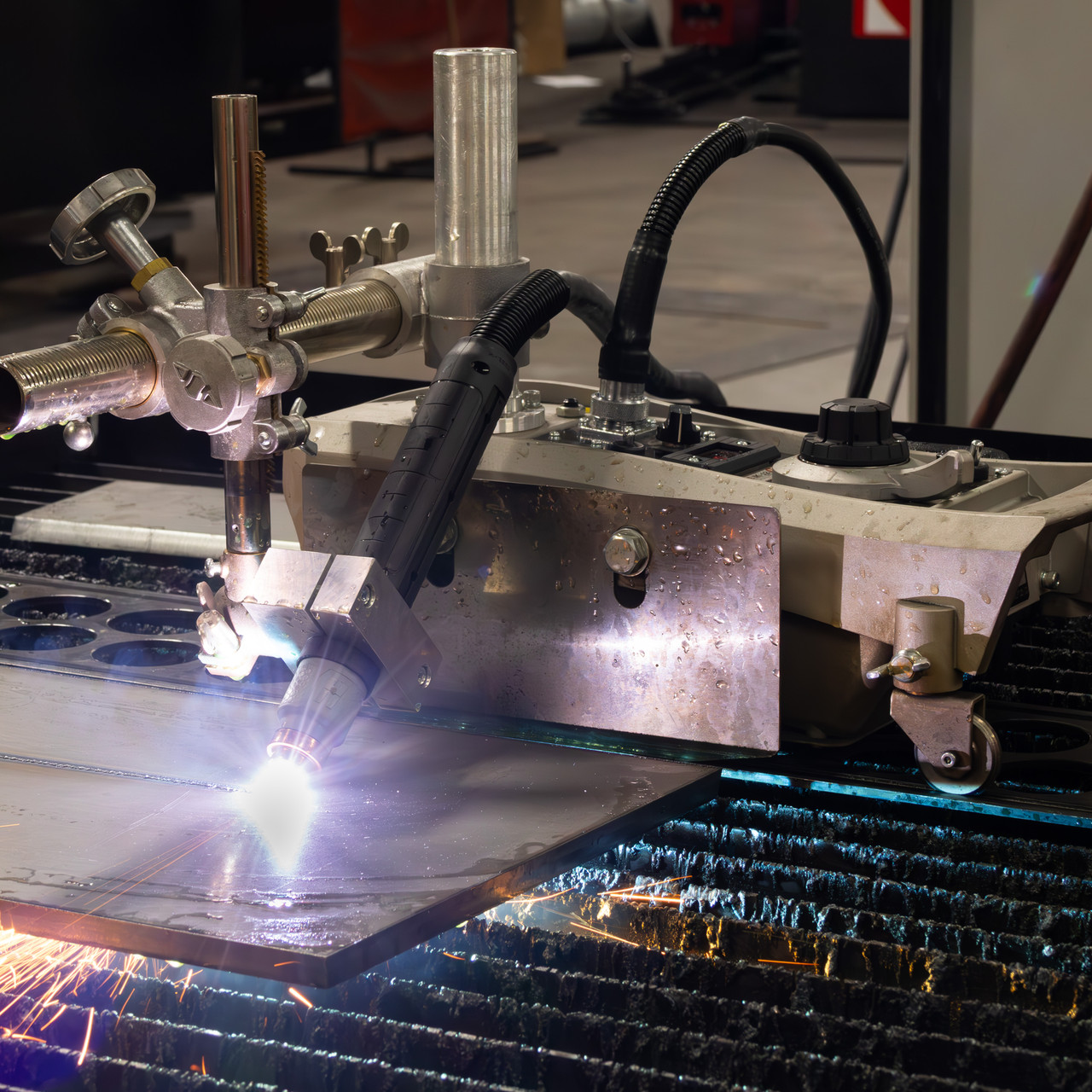

PLASMA TORCH HOLDER KIT

When paired with a customer-provided plasma unit, the IK-12 NEXT allows users to perform easy and accurate plasma cuts on-the-go with a torch tilt
of +/-45°.

Additionally, the IK-12 NEXT interface has built-in arc stablization,
allowing for programmable piercing.

banner-image

WELDING OPTIONS :

banner-image

BUTT WELDING TORCH CLAMP KIT

A single torch clamp design; provides welding torch with the ability to angle and tilt in all directions.

Unique adjustment mechanism allows for +/- 45 ° tilt to provide easy and accurate positioning.

Compatible with Miller and Lincoln welding systems.

PENDULUM WEAVER KIT

Attachable weaving unit increases welding deposition with fewer passes.
Additional features include built-in numerical control for precise calibration of swing width and speed.

Boasts true plug-and-play setup with easy to install weaving control connector.

Compatible with Miller and Lincoln welding systems.

banner-image
